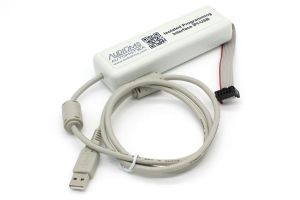

USB insulated programming interface, IPI-USB is used for connecting DC servo drive DCS-3010(-HV) and servo drive with analog output DCS-100-A V.3 to PC during the drive parameters tuning. Insulated interface has 2 connectors, USB for connecting to PC and IDC-10 connector for connecting to DC servo drive.

Insulation of digital lines is done by special technology based on the application of air-core transformer. This insulated component has significantly better performances compared to the conventional opto-isolated devices. In that way, USB insulated programming interface IPI-USB simplifies programming of DC servo drive in difficult field conditions.

IPI-USB User's manual

NOTE: specifications are subject to change without notice
